Solentra Commercial Fan Heaters

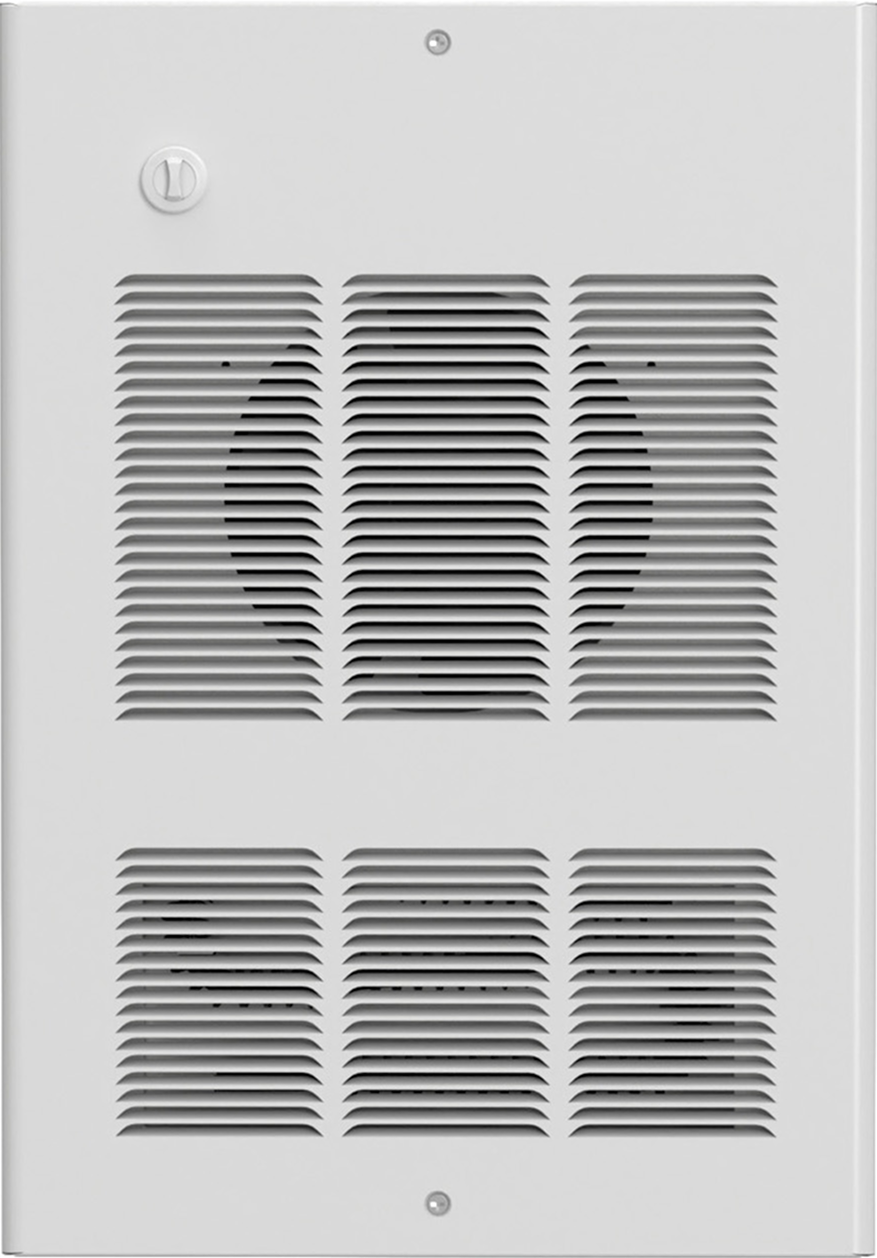

Solentra commercial fan heater
At a Glance
Output range
1,500 – 12,000 W
Heat output
5,118 – 40,944 BTU/hr
Voltage
208, 240/208, 480
Phase
1, 1/3
Grille sizes
Single, double, triple
Controls
Tamper-resistant built-in thermostat, or 24 V low voltage control
Construction
Steel housing with an epoxy polyester powder-coated finish
Colors
White, gray, black
Installation
Ceiling, surface-mount or recessed
Warranty
3 years on the complete unit, 5 years on parts
Applications
Vestibules, hallways, stairwells, kiosks, entrances, lobbies, workshops, factories and warehouses
Choose This When
→You need reliable, high-performance heating for commercial or industrial spaces such as workshops, warehouses, vestibules, stairwells, or lobbies
→Your project requires flexible installation options, including ceiling, surface-mount, or recessed configurations
→You need a heating solution available in a wide range of voltages and capacities to match varying building requirements
→Multiple heaters need to be controlled from a single thermostat using relay kits
→Durability is a priority, and you need a rugged heater built to withstand demanding, high-traffic environments
→You want fast, dependable heat with built-in safety features and minimal maintenance requirements
A Closer Look
Rugged Construction20-gauge steel housing with an epoxy polyester powder-coated finish resists abrasion, rust, fading, and impact in high-traffic environments.
Draft-Free ComfortFan delay prevents cold air from being circulated by allowing the heating element to warm up before the fan starts and using residual heat after the heating cycle ends.
Fast, Reliable HeatingHigh-performance sheath elements with spiral fins and a permanently enclosed lubricated motor delivers rapid heat with minimal maintenance.
Flexible Control OptionsAvailable with a tamper-resistant built-in thermostat and low-voltage control compatibility to accommodate a variety of applications.
Built to Your SpecificationCustom configurations let you select from various controls, finishes, wattages, voltages and accessories to meet your project needs.
Built-In Safety ProtectionIntegrated thermal safety features help prevent overheating and ensure safe, dependable operation.
Product Specifications
Available Models
| Model number | Unit size | Wattage | Voltage | Phase | Control type | Color | Optional accessory |
|---|---|---|---|---|---|---|---|
| SRA-FX01521CVBG7 | Single | 1500 | 208 | 1 | 24 V low voltage | Black | Disconnect switch 30A |
| SRA-FX01521CVB | Single | 1500 | 208 | 1 | 24 V low voltage | Black | — |
| SRA-FX01521CVGG7 | Single | 1500 | 208 | 1 | 24 V low voltage | Gray | Disconnect switch 30A |
| SRA-FX01521CVG | Single | 1500 | 208 | 1 | 24 V low voltage | Gray | — |
| SRA-FX01521CVWG7 | Single | 1500 | 208 | 1 | 24 V low voltage | White | Disconnect switch 30A |
| SRA-FX01521CVW | Single | 1500 | 208 | 1 | 24 V low voltage | White | — |
| SRA-FX01521TSBG7 | Single | 1500 | 208 | 1 | Built-in thermostat | Black | Disconnect switch 30A |
| SRA-FX01521TSB | Single | 1500 | 208 | 1 | Built-in thermostat | Black | — |
| SRA-FX01521TSGG7 | Single | 1500 | 208 | 1 | Built-in thermostat | Gray | Disconnect switch 30A |
| SRA-FX01521TSG | Single | 1500 | 208 | 1 | Built-in thermostat | Gray | — |
| SRA-FX01521TSWG7 | Single | 1500 | 208 | 1 | Built-in thermostat | White | Disconnect switch 30A |
| SRA-FX01521TSW | Single | 1500 | 208 | 1 | Built-in thermostat | White | — |
| SRA-FX15141CVBG7 | Single | 1500/1125 | 240/208 | 1 | 24 V low voltage | Black | Disconnect switch 30A |
| SRA-FX15141CVB | Single | 1500/1125 | 240/208 | 1 | 24 V low voltage | Black | — |
| SRA-FX15141CVGG7 | Single | 1500/1125 | 240/208 | 1 | 24 V low voltage | Gray | Disconnect switch 30A |
| SRA-FX15141CVG | Single | 1500/1125 | 240/208 | 1 | 24 V low voltage | Gray | — |
| SRA-FX15141CVWG7 | Single | 1500/1125 | 240/208 | 1 | 24 V low voltage | White | Disconnect switch 30A |
| SRA-FX15141CVW | Single | 1500/1125 | 240/208 | 1 | 24 V low voltage | White | — |
| SRA-FX15141TSBG7 | Single | 1500/1125 | 240/208 | 1 | Built-in thermostat | Black | Disconnect switch 30A |
| SRA-FX15141TSB | Single | 1500/1125 | 240/208 | 1 | Built-in thermostat | Black | — |
| SRA-FX15141TSGG7 | Single | 1500/1125 | 240/208 | 1 | Built-in thermostat | Gray | Disconnect switch 30A |
| SRA-FX15141TSG | Single | 1500/1125 | 240/208 | 1 | Built-in thermostat | Gray | — |
| SRA-FX15141TSWG7 | Single | 1500/1125 | 240/208 | 1 | Built-in thermostat | White | Disconnect switch 30A |
| SRA-FX15141TSW | Single | 1500/1125 | 240/208 | 1 | Built-in thermostat | White | — |
| SRA-FX01571CVBG7 | Single | 1500 | 480 | 1 | 24 V low voltage | Black | Disconnect switch 30A |
| SRA-FX01571CVB | Single | 1500 | 480 | 1 | 24 V low voltage | Black | — |
| SRA-FX01571CVGG7 | Single | 1500 | 480 | 1 | 24 V low voltage | Gray | Disconnect switch 30A |
| SRA-FX01571CVG | Single | 1500 | 480 | 1 | 24 V low voltage | Gray | — |
| SRA-FX01571CVWG7 | Single | 1500 | 480 | 1 | 24 V low voltage | White | Disconnect switch 30A |
| SRA-FX01571CVW | Single | 1500 | 480 | 1 | 24 V low voltage | White | — |
| SRA-FX01571TSBG7 | Single | 1500 | 480 | 1 | Built-in thermostat | Black | Disconnect switch 30A |
| SRA-FX01571TSB | Single | 1500 | 480 | 1 | Built-in thermostat | Black | — |
| SRA-FX01571TSGG7 | Single | 1500 | 480 | 1 | Built-in thermostat | Gray | Disconnect switch 30A |
| SRA-FX01571TSG | Single | 1500 | 480 | 1 | Built-in thermostat | Gray | — |
| SRA-FX01571TSWG7 | Single | 1500 | 480 | 1 | Built-in thermostat | White | Disconnect switch 30A |
| SRA-FX01571TSW | Single | 1500 | 480 | 1 | Built-in thermostat | White | — |
| SRA-FX02021CVBG7 | Single | 2000 | 208 | 1 | 24 V low voltage | Black | Disconnect switch 30A |
| SRA-FX02021CVB | Single | 2000 | 208 | 1 | 24 V low voltage | Black | — |
| SRA-FX02021CVGG7 | Single | 2000 | 208 | 1 | 24 V low voltage | Gray | Disconnect switch 30A |
| SRA-FX02021CVG | Single | 2000 | 208 | 1 | 24 V low voltage | Gray | — |
| SRA-FX02021CVWG7 | Single | 2000 | 208 | 1 | 24 V low voltage | White | Disconnect switch 30A |
| SRA-FX02021CVW | Single | 2000 | 208 | 1 | 24 V low voltage | White | — |
| SRA-FX02021TSBG7 | Single | 2000 | 208 | 1 | Built-in thermostat | Black | Disconnect switch 30A |
| SRA-FX02021TSB | Single | 2000 | 208 | 1 | Built-in thermostat | Black | — |
| SRA-FX02021TSGG7 | Single | 2000 | 208 | 1 | Built-in thermostat | Gray | Disconnect switch 30A |
| SRA-FX02021TSG | Single | 2000 | 208 | 1 | Built-in thermostat | Gray | — |
| SRA-FX02021TSWG7 | Single | 2000 | 208 | 1 | Built-in thermostat | White | Disconnect switch 30A |
| SRA-FX02021TSW | Single | 2000 | 208 | 1 | Built-in thermostat | White | — |
| SRA-FX21541CVBG7 | Single | 2000/1500 | 240/208 | 1 | 24 V low voltage | Black | Disconnect switch 30A |
| SRA-FX21541CVB | Single | 2000/1500 | 240/208 | 1 | 24 V low voltage | Black | — |
| SRA-FX21541CVGG7 | Single | 2000/1500 | 240/208 | 1 | 24 V low voltage | Gray | Disconnect switch 30A |
| SRA-FX21541CVG | Single | 2000/1500 | 240/208 | 1 | 24 V low voltage | Gray | — |
| SRA-FX21541CVWG7 | Single | 2000/1500 | 240/208 | 1 | 24 V low voltage | White | Disconnect switch 30A |
| SRA-FX21541CVW | Single | 2000/1500 | 240/208 | 1 | 24 V low voltage | White | — |
| SRA-FX21541TSBG7 | Single | 2000/1500 | 240/208 | 1 | Built-in thermostat | Black | Disconnect switch 30A |
| SRA-FX21541TSB | Single | 2000/1500 | 240/208 | 1 | Built-in thermostat | Black | — |
| SRA-FX21541TSGG7 | Single | 2000/1500 | 240/208 | 1 | Built-in thermostat | Gray | Disconnect switch 30A |
| SRA-FX21541TSG | Single | 2000/1500 | 240/208 | 1 | Built-in thermostat | Gray | — |
| SRA-FX21541TSWG7 | Single | 2000/1500 | 240/208 | 1 | Built-in thermostat | White | Disconnect switch 30A |
| SRA-FX21541TSW | Single | 2000/1500 | 240/208 | 1 | Built-in thermostat | White | — |
| SRA-FX02071CVBG7 | Single | 2000 | 480 | 1 | 24 V low voltage | Black | Disconnect switch 30A |
| SRA-FX02071CVB | Single | 2000 | 480 | 1 | 24 V low voltage | Black | — |
| SRA-FX02071CVGG7 | Single | 2000 | 480 | 1 | 24 V low voltage | Gray | Disconnect switch 30A |
| SRA-FX02071CVG | Single | 2000 | 480 | 1 | 24 V low voltage | Gray | — |
| SRA-FX02071CVWG7 | Single | 2000 | 480 | 1 | 24 V low voltage | White | Disconnect switch 30A |
| SRA-FX02071CVW | Single | 2000 | 480 | 1 | 24 V low voltage | White | — |
| SRA-FX02071TSBG7 | Single | 2000 | 480 | 1 | Built-in thermostat | Black | Disconnect switch 30A |
| SRA-FX02071TSB | Single | 2000 | 480 | 1 | Built-in thermostat | Black | — |
| SRA-FX02071TSGG7 | Single | 2000 | 480 | 1 | Built-in thermostat | Gray | Disconnect switch 30A |
| SRA-FX02071TSG | Single | 2000 | 480 | 1 | Built-in thermostat | Gray | — |
| SRA-FX02071TSWG7 | Single | 2000 | 480 | 1 | Built-in thermostat | White | Disconnect switch 30A |
| SRA-FX02071TSW | Single | 2000 | 480 | 1 | Built-in thermostat | White | — |
| SRA-FX32341CVBG7 | Single | 3000/2250 | 240/208 | 1 | 24 V low voltage | Black | Disconnect switch 30A |
| SRA-FX32341CVB | Single | 3000/2250 | 240/208 | 1 | 24 V low voltage | Black | — |
| SRA-FX32341CVGG7 | Single | 3000/2250 | 240/208 | 1 | 24 V low voltage | Gray | Disconnect switch 30A |
| SRA-FX32341CVG | Single | 3000/2250 | 240/208 | 1 | 24 V low voltage | Gray | — |
| SRA-FX32341CVWG7 | Single | 3000/2250 | 240/208 | 1 | 24 V low voltage | White | Disconnect switch 30A |
| SRA-FX32341CVW | Single | 3000/2250 | 240/208 | 1 | 24 V low voltage | White | — |
| SRA-FX32341TSBG7 | Single | 3000/2250 | 240/208 | 1 | Built-in thermostat | Black | Disconnect switch 30A |
| SRA-FX32341TSB | Single | 3000/2250 | 240/208 | 1 | Built-in thermostat | Black | — |
| SRA-FX32341TSGG7 | Single | 3000/2250 | 240/208 | 1 | Built-in thermostat | Gray | Disconnect switch 30A |
| SRA-FX32341TSG | Single | 3000/2250 | 240/208 | 1 | Built-in thermostat | Gray | — |
| SRA-FX32341TSWG7 | Single | 3000/2250 | 240/208 | 1 | Built-in thermostat | White | Disconnect switch 30A |
| SRA-FX32341TSW | Single | 3000/2250 | 240/208 | 1 | Built-in thermostat | White | — |
| SRA-FX04022CVBG7 | Single | 4000 | 208 | 1/3 | 24 V low voltage | Black | Disconnect switch 30A |
| SRA-FX04022CVB | Single | 4000 | 208 | 1/3 | 24 V low voltage | Black | — |
| SRA-FX04022CVGG7 | Single | 4000 | 208 | 1/3 | 24 V low voltage | Gray | Disconnect switch 30A |
| SRA-FX04022CVG | Single | 4000 | 208 | 1/3 | 24 V low voltage | Gray | — |
| SRA-FX04022CVWG7 | Single | 4000 | 208 | 1/3 | 24 V low voltage | White | Disconnect switch 30A |
| SRA-FX04022CVW | Single | 4000 | 208 | 1/3 | 24 V low voltage | White | — |
| SRA-FX04022TSBG7 | Single | 4000 | 208 | 1/3 | Built-in thermostat | Black | Disconnect switch 30A |
| SRA-FX04022TSB | Single | 4000 | 208 | 1/3 | Built-in thermostat | Black | — |
| SRA-FX04022TSGG7 | Single | 4000 | 208 | 1/3 | Built-in thermostat | Gray | Disconnect switch 30A |
| SRA-FX04022TSG | Single | 4000 | 208 | 1/3 | Built-in thermostat | Gray | — |
| SRA-FX04022TSWG7 | Single | 4000 | 208 | 1/3 | Built-in thermostat | White | Disconnect switch 30A |
| SRA-FX04022TSW | Single | 4000 | 208 | 1/3 | Built-in thermostat | White | — |
| SRA-FX43342CVBG7 | Single | 4000/3000 | 240/208 | 1/3 | 24 V low voltage | Black | Disconnect switch 30A |
| SRA-FX43342CVB | Single | 4000/3000 | 240/208 | 1/3 | 24 V low voltage | Black | — |
| SRA-FX43342CVGG7 | Single | 4000/3000 | 240/208 | 1/3 | 24 V low voltage | Gray | Disconnect switch 30A |
| SRA-FX43342CVG | Single | 4000/3000 | 240/208 | 1/3 | 24 V low voltage | Gray | — |
| SRA-FX43342CVWG7 | Single | 4000/3000 | 240/208 | 1/3 | 24 V low voltage | White | Disconnect switch 30A |
| SRA-FX43342CVW | Single | 4000/3000 | 240/208 | 1/3 | 24 V low voltage | White | — |
| SRA-FX43342TSBG7 | Single | 4000/3000 | 240/208 | 1/3 | Built-in thermostat | Black | Disconnect switch 30A |
| SRA-FX43342TSB | Single | 4000/3000 | 240/208 | 1/3 | Built-in thermostat | Black | — |
| SRA-FX43342TSGG7 | Single | 4000/3000 | 240/208 | 1/3 | Built-in thermostat | Gray | Disconnect switch 30A |
| SRA-FX43342TSG | Single | 4000/3000 | 240/208 | 1/3 | Built-in thermostat | Gray | — |
| SRA-FX43342TSWG7 | Single | 4000/3000 | 240/208 | 1/3 | Built-in thermostat | White | Disconnect switch 30A |
| SRA-FX43342TSW | Single | 4000/3000 | 240/208 | 1/3 | Built-in thermostat | White | — |
| SRA-FX04072CVBG7 | Single | 4000 | 480 | 1/3 | 24 V low voltage | Black | Disconnect switch 30A |
| SRA-FX04072CVB | Single | 4000 | 480 | 1/3 | 24 V low voltage | Black | — |
| SRA-FX04072CVGG7 | Single | 4000 | 480 | 1/3 | 24 V low voltage | Gray | Disconnect switch 30A |
| SRA-FX04072CVG | Single | 4000 | 480 | 1/3 | 24 V low voltage | Gray | — |
| SRA-FX04072CVWG7 | Single | 4000 | 480 | 1/3 | 24 V low voltage | White | Disconnect switch 30A |
| SRA-FX04072CVW | Single | 4000 | 480 | 1/3 | 24 V low voltage | White | — |
| SRA-FX04072TSBG7 | Single | 4000 | 480 | 1/3 | Built-in thermostat | Black | Disconnect switch 30A |
| SRA-FX04072TSB | Single | 4000 | 480 | 1/3 | Built-in thermostat | Black | — |
| SRA-FX04072TSGG7 | Single | 4000 | 480 | 1/3 | Built-in thermostat | Gray | Disconnect switch 30A |
| SRA-FX04072TSG | Single | 4000 | 480 | 1/3 | Built-in thermostat | Gray | — |
| SRA-FX04072TSWG7 | Single | 4000 | 480 | 1/3 | Built-in thermostat | White | Disconnect switch 30A |
| SRA-FX04072TSW | Single | 4000 | 480 | 1/3 | Built-in thermostat | White | — |
| SRA-FX04822CVBG7 | Single | 4800 | 208 | 1/3 | 24 V low voltage | Black | Disconnect switch 30A |
| SRA-FX04822CVB | Single | 4800 | 208 | 1/3 | 24 V low voltage | Black | — |
| SRA-FX04822CVGG7 | Single | 4800 | 208 | 1/3 | 24 V low voltage | Gray | Disconnect switch 30A |
| SRA-FX04822CVG | Single | 4800 | 208 | 1/3 | 24 V low voltage | Gray | — |
| SRA-FX04822CVWG7 | Single | 4800 | 208 | 1/3 | 24 V low voltage | White | Disconnect switch 30A |
| SRA-FX04822CVW | Single | 4800 | 208 | 1/3 | 24 V low voltage | White | — |
| SRA-FX04822TSBG7 | Single | 4800 | 208 | 1/3 | Built-in thermostat | Black | Disconnect switch 30A |
| SRA-FX04822TSB | Single | 4800 | 208 | 1/3 | Built-in thermostat | Black | — |
| SRA-FX04822TSGG7 | Single | 4800 | 208 | 1/3 | Built-in thermostat | Gray | Disconnect switch 30A |
| SRA-FX04822TSG | Single | 4800 | 208 | 1/3 | Built-in thermostat | Gray | — |
| SRA-FX04822TSWG7 | Single | 4800 | 208 | 1/3 | Built-in thermostat | White | Disconnect switch 30A |
| SRA-FX04822TSW | Single | 4800 | 208 | 1/3 | Built-in thermostat | White | — |
| SRA-FX48442CVBG7 | Single | 4800/3600 | 240/208 | 1/3 | 24 V low voltage | Black | Disconnect switch 30A |
| SRA-FX48442CVB | Single | 4800/3600 | 240/208 | 1/3 | 24 V low voltage | Black | — |
| SRA-FX48442CVGG7 | Single | 4800/3600 | 240/208 | 1/3 | 24 V low voltage | Gray | Disconnect switch 30A |
| SRA-FX48442CVG | Single | 4800/3600 | 240/208 | 1/3 | 24 V low voltage | Gray | — |
| SRA-FX48442CVWG7 | Single | 4800/3600 | 240/208 | 1/3 | 24 V low voltage | White | Disconnect switch 30A |
| SRA-FX48442CVW | Single | 4800/3600 | 240/208 | 1/3 | 24 V low voltage | White | — |
| SRA-FX48442TSBG7 | Single | 4800/3600 | 240/208 | 1/3 | Built-in thermostat | Black | Disconnect switch 30A |
| SRA-FX48442TSB | Single | 4800/3600 | 240/208 | 1/3 | Built-in thermostat | Black | — |
| SRA-FX48442TSGG7 | Single | 4800/3600 | 240/208 | 1/3 | Built-in thermostat | Gray | Disconnect switch 30A |
| SRA-FX48442TSG | Single | 4800/3600 | 240/208 | 1/3 | Built-in thermostat | Gray | — |
| SRA-FX48442TSWG7 | Single | 4800/3600 | 240/208 | 1/3 | Built-in thermostat | White | Disconnect switch 30A |
| SRA-FX48442TSW | Single | 4800/3600 | 240/208 | 1/3 | Built-in thermostat | White | — |
| SRA-FX04872CVBG7 | Single | 4800 | 480 | 1/3 | 24 V low voltage | Black | Disconnect switch 30A |
| SRA-FX04872CVB | Single | 4800 | 480 | 1/3 | 24 V low voltage | Black | — |
| SRA-FX04872CVGG7 | Single | 4800 | 480 | 1/3 | 24 V low voltage | Gray | Disconnect switch 30A |
| SRA-FX04872CVG | Single | 4800 | 480 | 1/3 | 24 V low voltage | Gray | — |
| SRA-FX04872CVWG7 | Single | 4800 | 480 | 1/3 | 24 V low voltage | White | Disconnect switch 30A |
| SRA-FX04872CVW | Single | 4800 | 480 | 1/3 | 24 V low voltage | White | — |
| SRA-FX04872TSBG7 | Single | 4800 | 480 | 1/3 | Built-in thermostat | Black | Disconnect switch 30A |
| SRA-FX04872TSB | Single | 4800 | 480 | 1/3 | Built-in thermostat | Black | — |
| SRA-FX04872TSGG7 | Single | 4800 | 480 | 1/3 | Built-in thermostat | Gray | Disconnect switch 30A |
| SRA-FX04872TSG | Single | 4800 | 480 | 1/3 | Built-in thermostat | Gray | — |
| SRA-FX04872TSWG7 | Single | 4800 | 480 | 1/3 | Built-in thermostat | White | Disconnect switch 30A |
| SRA-FX04872TSW | Single | 4800 | 480 | 1/3 | Built-in thermostat | White | — |
| SRA-FD60542CVBG8 | Double | 6000/4500 | 240/208 | 1/3 | 24 V low voltage | Black | Disconnect switch 40A |
| SRA-FD60542CVB | Double | 6000/4500 | 240/208 | 1/3 | 24 V low voltage | Black | — |
| SRA-FD60542CVGG8 | Double | 6000/4500 | 240/208 | 1/3 | 24 V low voltage | Gray | Disconnect switch 40A |
| SRA-FD60542CVG | Double | 6000/4500 | 240/208 | 1/3 | 24 V low voltage | Gray | — |
| SRA-FD60542CVWG8 | Double | 6000/4500 | 240/208 | 1/3 | 24 V low voltage | White | Disconnect switch 40A |
| SRA-FD60542CVW | Double | 6000/4500 | 240/208 | 1/3 | 24 V low voltage | White | — |
| SRA-FD60542TSBG8 | Double | 6000/4500 | 240/208 | 1/3 | Built-in thermostat | Black | Disconnect switch 40A |
| SRA-FD60542TSB | Double | 6000/4500 | 240/208 | 1/3 | Built-in thermostat | Black | — |
| SRA-FD60542TSGG8 | Double | 6000/4500 | 240/208 | 1/3 | Built-in thermostat | Gray | Disconnect switch 40A |
| SRA-FD60542TSG | Double | 6000/4500 | 240/208 | 1/3 | Built-in thermostat | Gray | — |
| SRA-FD60542TSWG8 | Double | 6000/4500 | 240/208 | 1/3 | Built-in thermostat | White | Disconnect switch 40A |
| SRA-FD60542TSW | Double | 6000/4500 | 240/208 | 1/3 | Built-in thermostat | White | — |
| SRA-FD06072CVBG8 | Double | 6000 | 480 | 1/3 | 24 V low voltage | Black | Disconnect switch 40A |
| SRA-FD06072CVB | Double | 6000 | 480 | 1/3 | 24 V low voltage | Black | — |
| SRA-FD06072CVGG8 | Double | 6000 | 480 | 1/3 | 24 V low voltage | Gray | Disconnect switch 40A |
| SRA-FD06072CVG | Double | 6000 | 480 | 1/3 | 24 V low voltage | Gray | — |
| SRA-FD06072CVWG8 | Double | 6000 | 480 | 1/3 | 24 V low voltage | White | Disconnect switch 40A |
| SRA-FD06072CVW | Double | 6000 | 480 | 1/3 | 24 V low voltage | White | — |
| SRA-FD06072TSBG8 | Double | 6000 | 480 | 1/3 | Built-in thermostat | Black | Disconnect switch 40A |
| SRA-FD06072TSB | Double | 6000 | 480 | 1/3 | Built-in thermostat | Black | — |
| SRA-FD06072TSGG8 | Double | 6000 | 480 | 1/3 | Built-in thermostat | Gray | Disconnect switch 40A |
| SRA-FD06072TSG | Double | 6000 | 480 | 1/3 | Built-in thermostat | Gray | — |
| SRA-FD06072TSWG8 | Double | 6000 | 480 | 1/3 | Built-in thermostat | White | Disconnect switch 40A |
| SRA-FD06072TSW | Double | 6000 | 480 | 1/3 | Built-in thermostat | White | — |
| SRA-FD08022CVBG8 | Double | 8000 | 208 | 1/3 | 24 V low voltage | Black | Disconnect switch 40A |
| SRA-FD08022CVB | Double | 8000 | 208 | 1/3 | 24 V low voltage | Black | — |
| SRA-FD08022CVGG8 | Double | 8000 | 208 | 1/3 | 24 V low voltage | Gray | Disconnect switch 40A |
| SRA-FD08022CVG | Double | 8000 | 208 | 1/3 | 24 V low voltage | Gray | — |
| SRA-FD08022CVWG8 | Double | 8000 | 208 | 1/3 | 24 V low voltage | White | Disconnect switch 40A |
| SRA-FD08022CVW | Double | 8000 | 208 | 1/3 | 24 V low voltage | White | — |
| SRA-FD08022TSBG8 | Double | 8000 | 208 | 1/3 | Built-in thermostat | Black | Disconnect switch 40A |
| SRA-FD08022TSB | Double | 8000 | 208 | 1/3 | Built-in thermostat | Black | — |
| SRA-FD08022TSGG8 | Double | 8000 | 208 | 1/3 | Built-in thermostat | Gray | Disconnect switch 40A |
| SRA-FD08022TSG | Double | 8000 | 208 | 1/3 | Built-in thermostat | Gray | — |
| SRA-FD08022TSWG8 | Double | 8000 | 208 | 1/3 | Built-in thermostat | White | Disconnect switch 40A |
| SRA-FD08022TSW | Double | 8000 | 208 | 1/3 | Built-in thermostat | White | — |
| SRA-FD80642CVBG8 | Double | 8000/6000 | 240/208 | 1/3 | 24 V low voltage | Black | Disconnect switch 40A |
| SRA-FD80642CVB | Double | 8000/6000 | 240/208 | 1/3 | 24 V low voltage | Black | — |
| SRA-FD80642CVGG8 | Double | 8000/6000 | 240/208 | 1/3 | 24 V low voltage | Gray | Disconnect switch 40A |
| SRA-FD80642CVG | Double | 8000/6000 | 240/208 | 1/3 | 24 V low voltage | Gray | — |
| SRA-FD80642CVWG8 | Double | 8000/6000 | 240/208 | 1/3 | 24 V low voltage | White | Disconnect switch 40A |
| SRA-FD80642CVW | Double | 8000/6000 | 240/208 | 1/3 | 24 V low voltage | White | — |
| SRA-FD80642TSBG8 | Double | 8000/6000 | 240/208 | 1/3 | Built-in thermostat | Black | Disconnect switch 40A |
| SRA-FD80642TSB | Double | 8000/6000 | 240/208 | 1/3 | Built-in thermostat | Black | — |
| SRA-FD80642TSGG8 | Double | 8000/6000 | 240/208 | 1/3 | Built-in thermostat | Gray | Disconnect switch 40A |
| SRA-FD80642TSG | Double | 8000/6000 | 240/208 | 1/3 | Built-in thermostat | Gray | — |
| SRA-FD80642TSWG8 | Double | 8000/6000 | 240/208 | 1/3 | Built-in thermostat | White | Disconnect switch 40A |
| SRA-FD80642TSW | Double | 8000/6000 | 240/208 | 1/3 | Built-in thermostat | White | — |
| SRA-FD08072CVBG8 | Double | 8000 | 480 | 1/3 | 24 V low voltage | Black | Disconnect switch 40A |
| SRA-FD08072CVB | Double | 8000 | 480 | 1/3 | 24 V low voltage | Black | — |
| SRA-FD08072CVGG8 | Double | 8000 | 480 | 1/3 | 24 V low voltage | Gray | Disconnect switch 40A |
| SRA-FD08072CVG | Double | 8000 | 480 | 1/3 | 24 V low voltage | Gray | — |
| SRA-FD08072CVWG8 | Double | 8000 | 480 | 1/3 | 24 V low voltage | White | Disconnect switch 40A |
| SRA-FD08072CVW | Double | 8000 | 480 | 1/3 | 24 V low voltage | White | — |
| SRA-FD08072TSBG8 | Double | 8000 | 480 | 1/3 | Built-in thermostat | Black | Disconnect switch 40A |
| SRA-FD08072TSB | Double | 8000 | 480 | 1/3 | Built-in thermostat | Black | — |
| SRA-FD08072TSGG8 | Double | 8000 | 480 | 1/3 | Built-in thermostat | Gray | Disconnect switch 40A |
| SRA-FD08072TSG | Double | 8000 | 480 | 1/3 | Built-in thermostat | Gray | — |
| SRA-FD08072TSWG8 | Double | 8000 | 480 | 1/3 | Built-in thermostat | White | Disconnect switch 40A |
| SRA-FD08072TSW | Double | 8000 | 480 | 1/3 | Built-in thermostat | White | — |
| SRA-FM12022CVBG9 | Triple | 12000 | 208 | 1/3 | 24 V low voltage | Black | Disconnect switch 60A |
| SRA-FM12022CVB | Triple | 12000 | 208 | 1/3 | 24 V low voltage | Black | — |
| SRA-FM12022CVGG9 | Triple | 12000 | 208 | 1/3 | 24 V low voltage | Gray | Disconnect switch 60A |
| SRA-FM12022CVG | Triple | 12000 | 208 | 1/3 | 24 V low voltage | Gray | — |
| SRA-FM12022CVWG9 | Triple | 12000 | 208 | 1/3 | 24 V low voltage | White | Disconnect switch 60A |
| SRA-FM12022CVW | Triple | 12000 | 208 | 1/3 | 24 V low voltage | White | — |
| SRA-FM12022TSBG9 | Triple | 12000 | 208 | 1/3 | Built-in thermostat | Black | Disconnect switch 60A |
| SRA-FM12022TSB | Triple | 12000 | 208 | 1/3 | Built-in thermostat | Black | — |
| SRA-FM12022TSGG9 | Triple | 12000 | 208 | 1/3 | Built-in thermostat | Gray | Disconnect switch 60A |
| SRA-FM12022TSG | Triple | 12000 | 208 | 1/3 | Built-in thermostat | Gray | — |
| SRA-FM12022TSWG9 | Triple | 12000 | 208 | 1/3 | Built-in thermostat | White | Disconnect switch 60A |
| SRA-FM12022TSW | Triple | 12000 | 208 | 1/3 | Built-in thermostat | White | — |
| SRA-FM13042CVBG9 | Triple | 12000/9000 | 240/208 | 1/3 | 24 V low voltage | Black | Disconnect switch 60A |
| SRA-FM13042CVB | Triple | 12000/9000 | 240/208 | 1/3 | 24 V low voltage | Black | — |
| SRA-FM13042CVGG9 | Triple | 12000/9000 | 240/208 | 1/3 | 24 V low voltage | Gray | Disconnect switch 60A |
| SRA-FM13042CVG | Triple | 12000/9000 | 240/208 | 1/3 | 24 V low voltage | Gray | — |
| SRA-FM13042CVWG9 | Triple | 12000/9000 | 240/208 | 1/3 | 24 V low voltage | White | Disconnect switch 60A |
| SRA-FM13042CVW | Triple | 12000/9000 | 240/208 | 1/3 | 24 V low voltage | White | — |
| SRA-FM13042TSBG9 | Triple | 12000/9000 | 240/208 | 1/3 | Built-in thermostat | Black | Disconnect switch 60A |
| SRA-FM13042TSB | Triple | 12000/9000 | 240/208 | 1/3 | Built-in thermostat | Black | — |
| SRA-FM13042TSGG9 | Triple | 12000/9000 | 240/208 | 1/3 | Built-in thermostat | Gray | Disconnect switch 60A |
| SRA-FM13042TSG | Triple | 12000/9000 | 240/208 | 1/3 | Built-in thermostat | Gray | — |
| SRA-FM13042TSWG9 | Triple | 12000/9000 | 240/208 | 1/3 | Built-in thermostat | White | Disconnect switch 60A |
| SRA-FM13042TSW | Triple | 12000/9000 | 240/208 | 1/3 | Built-in thermostat | White | — |
| SRA-FM12072CVBG9 | Triple | 12000 | 480 | 1/3 | 24 V low voltage | Black | Disconnect switch 60A |
| SRA-FM12072CVB | Triple | 12000 | 480 | 1/3 | 24 V low voltage | Black | — |
| SRA-FM12072CVGG9 | Triple | 12000 | 480 | 1/3 | 24 V low voltage | Gray | Disconnect switch 60A |
| SRA-FM12072CVG | Triple | 12000 | 480 | 1/3 | 24 V low voltage | Gray | — |
| SRA-FM12072CVWG9 | Triple | 12000 | 480 | 1/3 | 24 V low voltage | White | Disconnect switch 60A |
| SRA-FM12072CVW | Triple | 12000 | 480 | 1/3 | 24 V low voltage | White | — |
| SRA-FM12072TSBG9 | Triple | 12000 | 480 | 1/3 | Built-in thermostat | Black | Disconnect switch 60A |
| SRA-FM12072TSB | Triple | 12000 | 480 | 1/3 | Built-in thermostat | Black | — |
| SRA-FM12072TSGG9 | Triple | 12000 | 480 | 1/3 | Built-in thermostat | Gray | Disconnect switch 60A |
| SRA-FM12072TSG | Triple | 12000 | 480 | 1/3 | Built-in thermostat | Gray | — |
| SRA-FM12072TSWG9 | Triple | 12000 | 480 | 1/3 | Built-in thermostat | White | Disconnect switch 60A |
| SRA-FM12072TSW | Triple | 12000 | 480 | 1/3 | Built-in thermostat | White | — |
No models match these filters.
Scroll for more
Accessories
Factory installed
Ordered with the heater and fitted at the factory.
| Code | Accessory |
|---|---|
| G7 | Disconnect switch 30A |
| G8 | Disconnect switch 40A |
| G9 | Disconnect switch 60A |
Field installed
Ordered separately and fitted on site.
| Model number | Accessory |
|---|---|
| F-1S-W | Surface mount box, single unit, white |
| F-2S-W | Surface mount box, double unit, white |
| F-3S-W | Surface mount box, triple unit, white |
| F-1S-G | Surface mount box, single unit, gray |
| F-2S-G | Surface mount box, double unit, gray |
| F-3S-G | Surface mount box, triple unit, gray |
| F-1S-B | Surface mount box, single unit, black |
| F-2S-B | Surface mount box, double unit, black |
| F-3S-B | Surface mount box, triple unit, black |
| F-1R-W | Recessed trim kit, single, white |
| F-2R-W | Recessed trim kit, double, white |
| F-3R-W | Recessed trim kit, triple, white |
| F-1R-G | Recessed trim kit, single, gray |
| F-2R-G | Recessed trim kit, double, gray |
| F-3R-G | Recessed trim kit, triple, gray |
| F-1R-B | Recessed trim kit, single, black |
| F-2R-B | Recessed trim kit, double, black |
| F-3R-B | Recessed trim kit, triple, black |
